Solution Features
Arina energy provides scalable solutions to residential needs in both single and three-phase models with integrated energy storage solutions to generate clean energy.
Our objective is to create reliable solutions for users to protect from rising electricity costs, maximize self-consumption and ensure power safety. Arina solutions feature superior safety and easy installation.

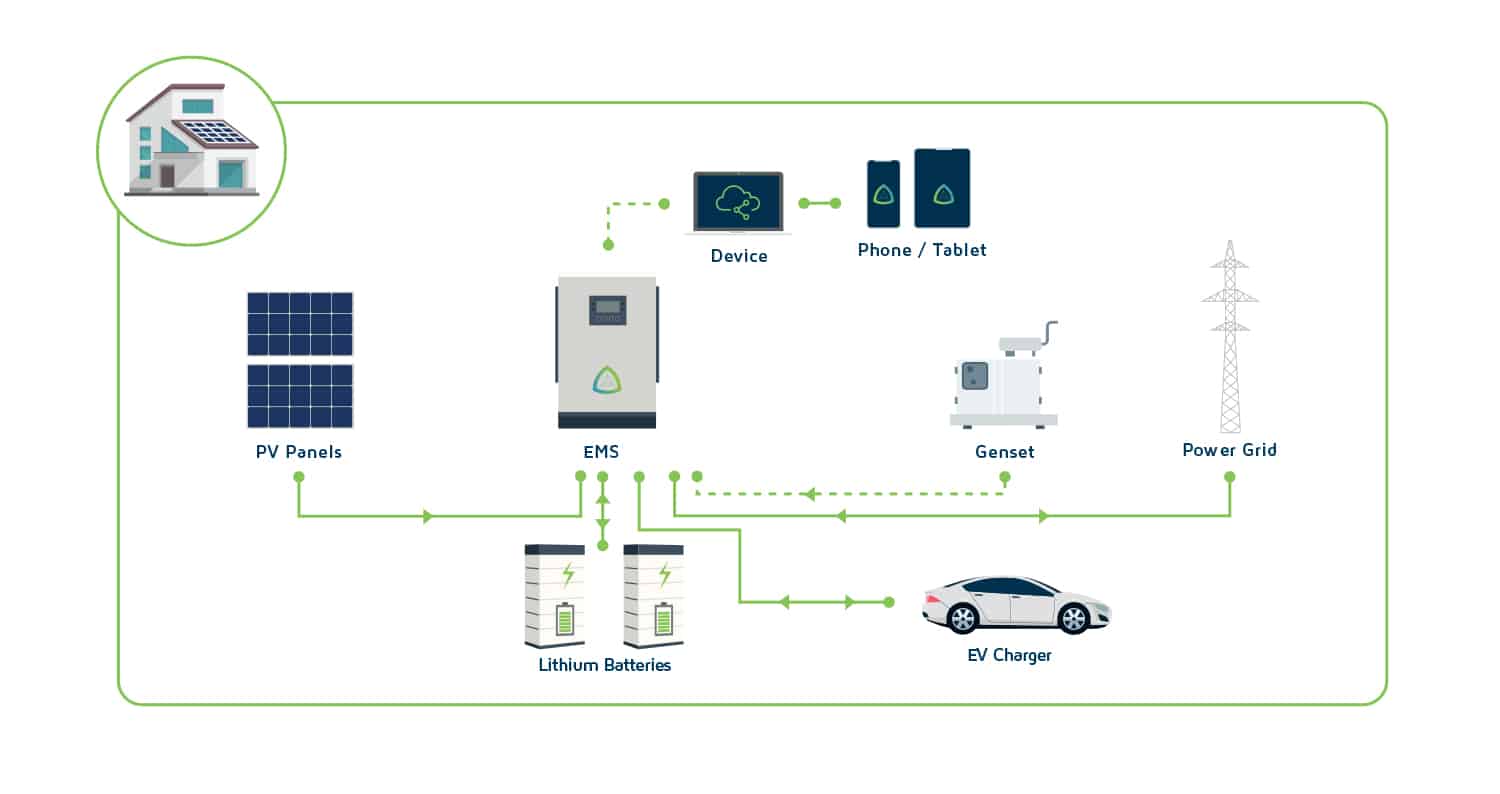

System Diagram
System Details
Single Phase | Three Phase | |
ARS5S14 | ARS10T25 | |
Solar input | ||
Number of Panels | 10 | 18 |
Maximum DC Power (W) | 6000 | 8000 |
Maximum DC Voltage (V) | 600 | 1000 |
Maximum Input Current per String (A) | 12 | 14 |
Maximum Short Circuit Current per String (A) | 14 | 12 |
MPPT Voltage Range (V) | 125-550 | 180-950 |
MPPT Voltage Range (V) at Full load (V) | 217-500 | 330-800 |
MPPT Inputs | 2 | 2 |
AC | ||
Nominal Power (VA) | 5000 | 10000 |
Maximum Power (VA) | 5500 | 11000 |
Nominal Voltage (V) | 230 | 400/230 |
Nominal frequency (Hz) | 50 | 50 |
Maximum Input Current (A) | 21.7 | 16*3 |
Maximum Output Current (A) | 23.9 | 15.9*3 |
Off-Grid Nominal Output Power (VA) | 5000 | 10000 |
Off-Grid Peak Output Power (W) | 8000,10s | 15000,60s |
Battery | ||
Battery System Voltage (V) | 48 | 48 |
Number of Cascaded Modules ) | 4 | 7 |
Max Charge /Discharge Current (A) | 20 | 25 |
Total Capacity (KWh) | 14.21 | 24.86 |
Depth of Discharge (%) | 90 | 90 |
General Data | ||
Dimensions | TBD | TBD |
Weight | TBD | TBD |
Ingress Protection | Indoor Rated | Indoor Rated |
Cooling | Natural | Natural |
Communication | Modbus ,Ethernet | Modbus ,Ethernet |
Safety Features | Anti-Islanding,Residual Current,Insulation Resistance,DC Reversed Polarity, Output Over Current,Output Over Voltage , Surge protection, Over Heat Protection | |
